- MR\VP 4-8K-IGBT


JPEG - 17 ko

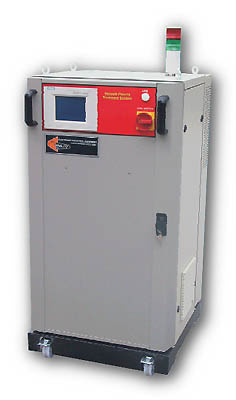

Generator "solid state" : MR\VP 4K-IGBT - MR\VP 8K-IGBT -
MR\VP 10K-IGBT - MR\VP 15K-IGBT

This type of generators represent a new industrial standard for applications
in under vacuum metallizing chambers.
The configuration of the power circuits.
The cooling by air (the system does not need any cooling by water,
avoiding all the problems may arise with this type of cooling)
The construction completely with solid-state components.
A modern Touch Panel used for the control of the generator, of the energy applied to the plasma chamber and for the management of the Mass-Flow-Control.
Are all requisities that position these equipments ahead for this type of applications.

MAIN CHARACTERISTICS

  • High efficiency thanks to the configuration of the power circuits and the use of IGBT modules
  • Electronic protection short-circuit proof in the inverter power modules.
  • Electronic protection in case of accidental overloads inside the plasma chamber.
  • Air cooling (the system does not need any cooling by water, avoiding all the problems that may arise with this kind of cooling)
  • Automatic matching to the varying load conditions (When used in automatic mode, the applied energy density is kept stricfly constant even in presence of variation of vacuum grade or when the quantity of gas injected varies)
  • Universal supply voltage 3x380-415-440 V (without need for a network transformer).
  • Construction according to EN-60204-1.
  • Electromagnetic compatibility (EMC) in accordance with norms EN-5511 and EN 50082-2.
  • Monitoring, display of work magnitudes and alarm signalling by special operator terminal Touch Panel.
